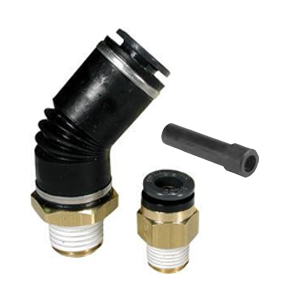

KV2, Fitting Connector
Configuration Options
Select Product Options
Select values from the drop down lists or make appropriate selections to configure the part number.
Body Style
-- Pick an Option --
E (Female Bulkhead Connector, Bulkhead Union)
F (Female Connector)
H (Straight Male Connector, Union, SAE Flare)
K (45° Male Elbow)
KF (45° Female Elbow)
L (90° Male Elbow, 90° Plug-in Elbow, 90° Union Elbow)
LF (90° Female Elbow)
R (Plug-in Reducer)
T (Male Branch Tee, Union Tee)
TF (Female Branch Tee)
U (Plug-in Y, Male Branch Y, Union Y)
UD (Union Double Y)
V (Universal Male 90° Elbow)
VD (Male Double Universal 90° Elbow)
VF (Universal Female 90° Elbow)
Y (Male Run Tee)
Z (Male Branch Universal 90° Elbow)
P (Plug)
Tube A
-- Pick an Option --
N/A (For KV2P)
03 (5/32)
07 (1/4)
11 (3/8)
13 (1/2)
15 (5/8)
19 (3/4)
Tube B
-- Pick an Option --
Not Applicable
00 (Same Diameter Tube)
03 (5/32)
07 (1/4)
11 (3/8)
13 (1/2)
15 (5/8)
19 (3/4)
Thread-Tube Size
-- Pick an Option --
Not Applicable
33 (1/16-27 NPT)
34 (1/8-27 NPT)
35 (1/4-18 NPT)
36 (3/8-18 NPT)
37 (1/2-14 NPT)
38 (3/4-14 NPT)
99 (Same Dia. Rod)
S04 (7/16-20UNF, SAE Flare)
S06 (5/8-18UNF, SAE Flare)
S08 (3/4-16UNF, SAE Flare)
Sealant/Body Length
-- Pick an Option --
None, Standard Length
S (Sealant)
S1 (Sealant, Shorter Body for Z, U Styles)
S2 (Sealant, Shorter Body for VF, VD Styles)
-1 (Shorter Body for U Type Same Dia. Rod)
Options in:
Gray
are not compatible with other selected option value.
Red
conflict with another selected option value.
Amber
are not recommended.
